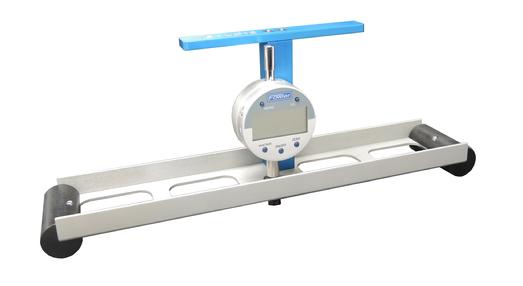

Modular Concepts' Warp Gauge is designed to quickly and accurately measure up to ½" of warp.
Custom length bases are available as a special order.
|
 |

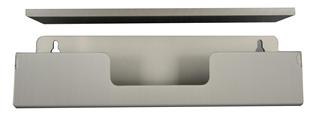

| Shown with Optional Calibration Plate & Tray (12" only) |
|
|
 |
| 3/8" Calibration Plate sits in bottom of Tray |
|
|
|
Standard Features
-
0-½" measuring range
-
Hardcoated aluminum base and handle
-
Mitutoyo® digital indicator
-
Battery powered
-
Preset capability allows operator to set a desired origin measurement and recall it at the push of a button
-
Instant inch/mm conversion
-
Convenient +/- counting direction button allows for positive or negative readings
-
Zero/ABS switch allows for setting zero at any point along spindle travel
-
send data to Mitutoyo® data recorders, miniprocessors and interfaces for Host Computer Systems for x-R charts, histograms and advanced SPC analysis (available from Mitutoyo dealers)
-
12” length (other lengths available as special order)
|
Modular Concepts can provide replacement parts for your warp gauge and also offers complete rebuilding services. Call for pricing of replacement parts or for an estimate of rebuilding cost.
|
|
